VB200 - Getting Started

VIDEO SOUNDBAR | All-In-One Conferencing Solution

VL-VB200

QUICK START GUIDE

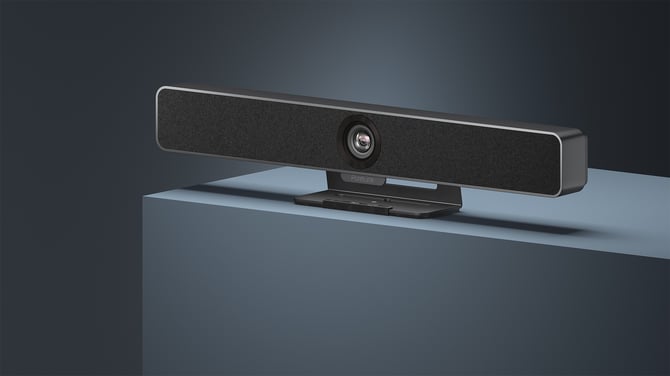

INTRODUCTION

This product is an all-in-one meeting videobar with ultra-wide angle 4K camera, microphone and speaker. It is ideal for applications in huddle rooms, small meeting rooms, private offices and home offices.

FEATURES

Wide angle 4K video camera with 120° FOV.
4x MEMS digital microphone arrays with a range of 3 — 5 meters and an angle of 180°.
2x MW Stereofull range speal‹ers with passive radiator bass enhancement.
Includes AEC (Acoustic Echo Cancellation), AGC (Automatic Gain Control), ANS (Automatic Noise Suppression) and full duplex mode communication to make all participants feel like they are in the same room.
Auto Framing / Speaker Tracking / Presenter Tracking based on Al technology makes meetings more intimate and friendly.
Plug and play with excellent compatibility for OS and UC applications, such as Zoom, WebEx, Tecent meeting,Teams, etc.
Windows and MAC OS App provided for easy control.

PACKAGE CONTENTS

1x Video Bar
1x DC 12V Power Adapter
1x Magnetic Lens Cap
1x Wall-mounted Bracket
6x Expansion Screws
6x Mounting Screws

SPECIFICATIONS

AUDIO AND VIDEO
Input/Output	1x USB-C
Video Resolutions (Max)	5840x2160 @30Hz
Output Video Encoding	MJPEG / YUY2 / H.264 / H.265 \| UVC 1.1

CAMERA AND SENSOR
Lens	Fixed focus
Sensor	1/2.8", CMOS, Effective Pixel: 8.OM
White Balance	Auto
Backlight Compensation	Auto
Digital Noise Reduction	2D, 3D Digital noise reduction supported
Viewing Angle	FOV 120°
ePTZ	Supported \| 5x Digital Zoom
HDR	Supported
Tracking Mode	Auto Framing / Speaker Tracking / Presenter Tracking

SPEAKERPHONE
Microphone	4x Linear microphone arrays with echo cancellation Pick-up Range: 5m
Speaker	2x 3W

COMMUNICATION AND CONTROL
USB-C	USB Type-C female with locking
Control Method	Windows or MAC OS App

GENERAL
Operating Temperature	0°C ~ 40°C, 10% to 90%, non-condensing
Storage Temperature	-20°C ~ 60°C, 10% to 90%, non-condensing
MTBF	> 30000h
Power Supply	DC12V 2A
Power Consumption (Max)	6W
Dimension (Width x Height x Depth)	460 mm x 97.43 mm x 61 mm (with bracket)
Net Weight	0.81 kg (with Bracket)
Gross Weight	2.06 kg

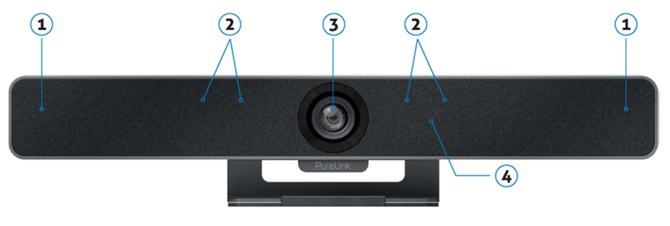

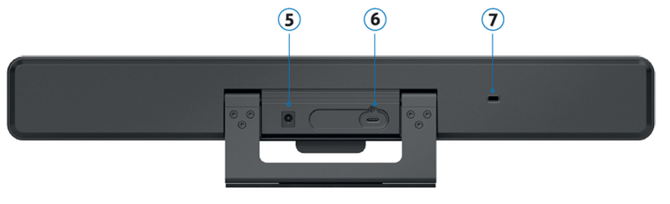

PANEL DESCRIPTION

ID	NAME	DESCRIPTION
1	Speaker	Outputs audio signal of the input source.
2	Microphone	4x Linear mic arrays for picking up sound.
5	Lens	Camera lens
4	Status LED	Constant blue: The device is powered on. The device is in standby state. Constant white: The device is working properly. Blinking white quickly: The device is being upgraded. Constant red: The device‘s microphone is muted.
5	Power	12V 2A DC power input. Connect to the power adapter provided.
6	USB-C	USB Type-C port. Connect to the PC for transmitting audio and 4K camera video signal using USB-C cable.
7		Kensington security slot

INSTALLATION

Note: Before installation, please ensure the device is disconnected from the power source.

To install the device on a monitor:

Place the device on the top of a monitor, then adjust the bracket's angle so that the device stands firmly on the monitor.

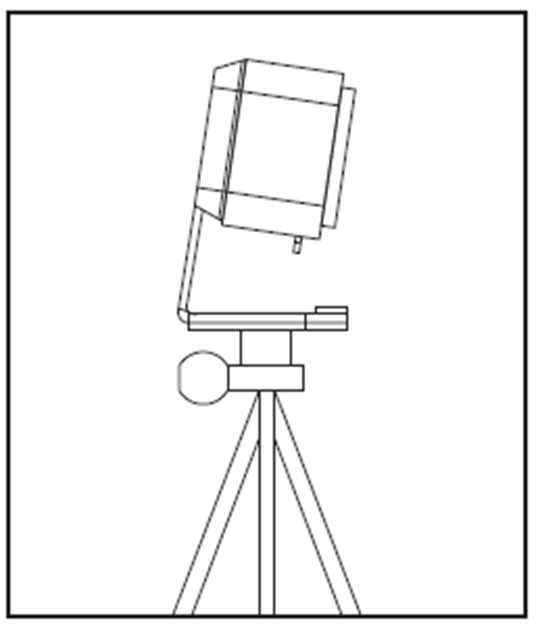

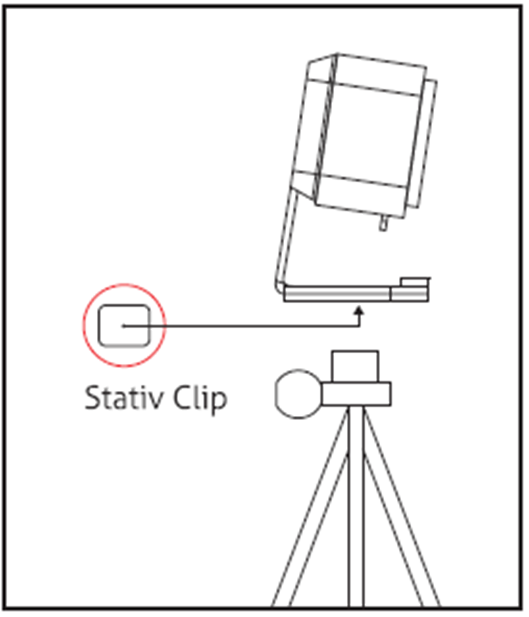

To install the device on a tripod:

Screw the tripod's clip into the M12 thread hole at the device's bottom
Secure the device along with the clip on the tripod, adjust to a position and height you desire.

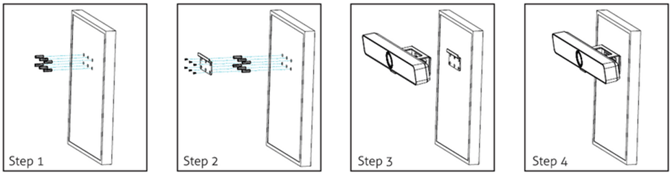

To install the device on the wall:

Drill holes in the wall you desire, then insert the expansion screws provided into the holes
Secure the wall-mounted bracket provided on the wall using the screws provided
Secure the device on the wall-mounted bracket.

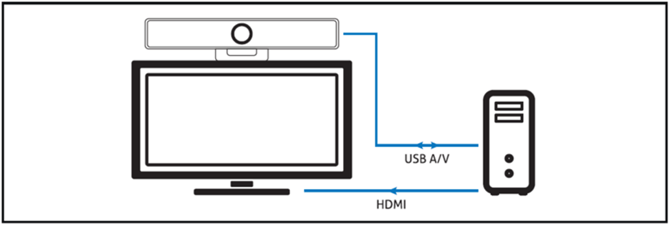

APPLICATION

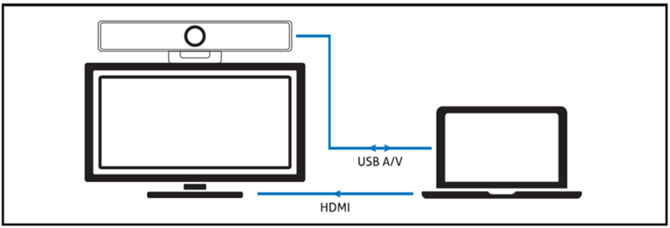

Application 1 - Huddle/small room (for 2~7 people)

Application 2 — Private office/Home office

Note: After the device is connected to a computer, it can be detected by the system and specific applications in the name of the following:

Model: VB200
Camera: VB200
Speaker: VB200
Microphone: VB200

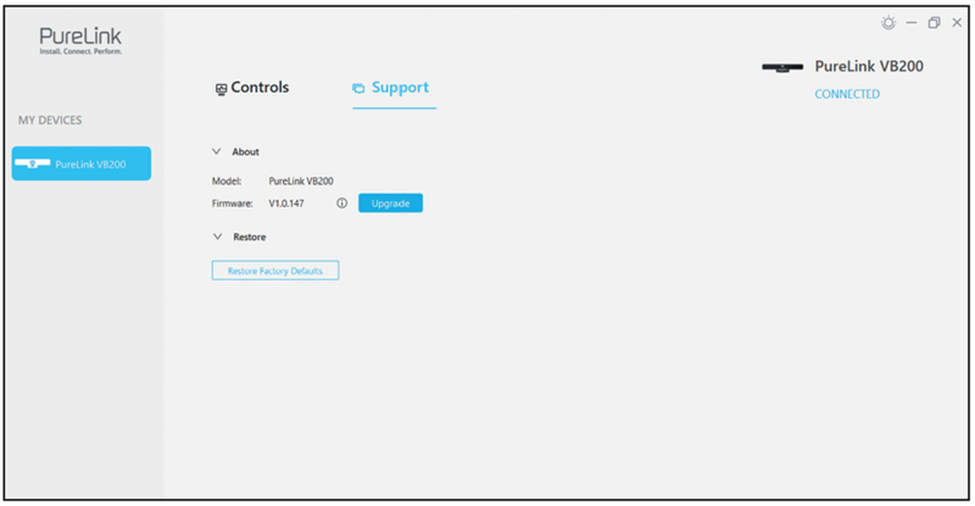

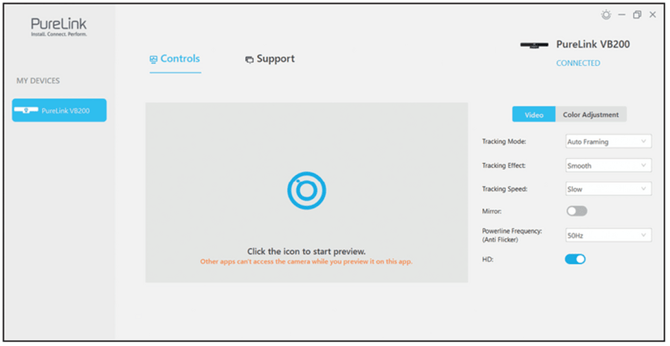

VL-VB200 Software

ELEMENTS	DESCRIPTION / OPTIONS
Tracking Mode	Auto Framing (default): Camera tracks group participants automatically. Speaker Tracking: Camera tracks speakers automatically. Presenter Tracking: Camera tracks the first recognized presenter automatically Off
Tracking Effect	Tracking effect is available when Auto Framing is enabled. Smooth (default): The tracking image moves smoothly in the frame. Immediate: The tracking Image switches from one to another immediately in the frame.
Tracking Speed	Tracking speed is available when Auto Framing is enabled. Slow (default)/Normal/Fast
Mirror	Mirror image function On: Image flipped horizontally. Off (default setting): Image not flipped horizontally.
Powerline Frequency (Anti Flicker)	Change the frequency to prevent flicker in the video. 50Hz (default) /60Hz
HD	On (default): Turn on for better image quality. Off: Turn off for better compatibility.
	Click this icon to enable camera preview. Note: Other Apps cannot use the camera until camera preview is disabled.

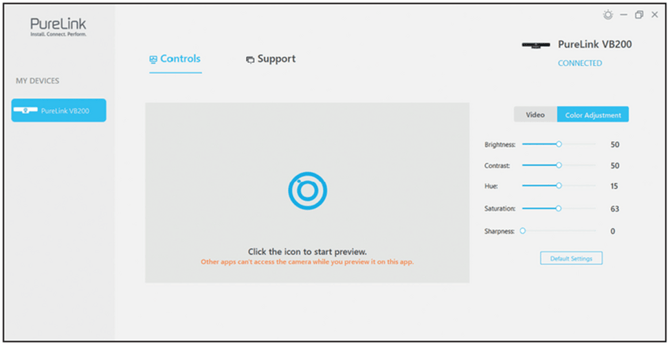

Controls-Color Adjustment

ELEMENTS	DESCRIPTION / OPTIONS
Brightness	Adjust the brightness of the camera manually.
Contrast	Adjust the contrast of the camera manually.
Hue	Adjust the hue of the camera manually.
Saturation	Adjust the saturation of the camera manually.
Sharpness	Adjust the sharpness of the camera manually.
Default Settings	Restores all color parameters to their default values.
